Hello everyone.
In the previous post, thelivingchristmascompany.com guided everyone to connect and install the Allen Bradley PowerFlex 525 inverter.

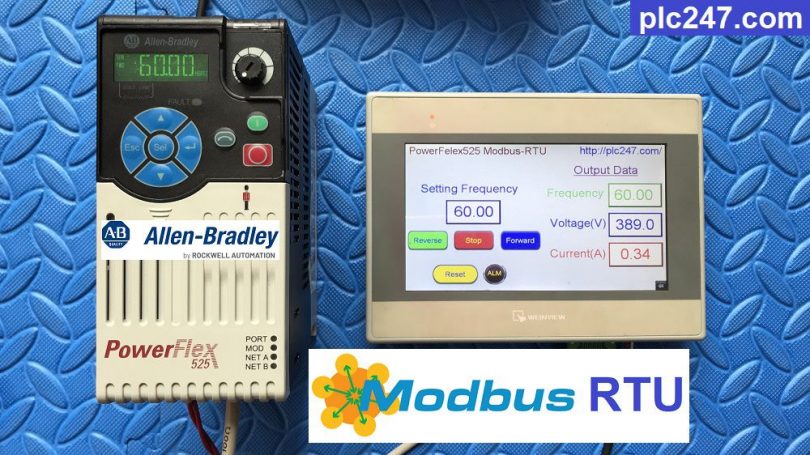

Today I would like to continue to guide you to control the inverter through a very popular communication standard in the industry: Modbus-RTU. And the device used is HMI Weintek MT8071iE

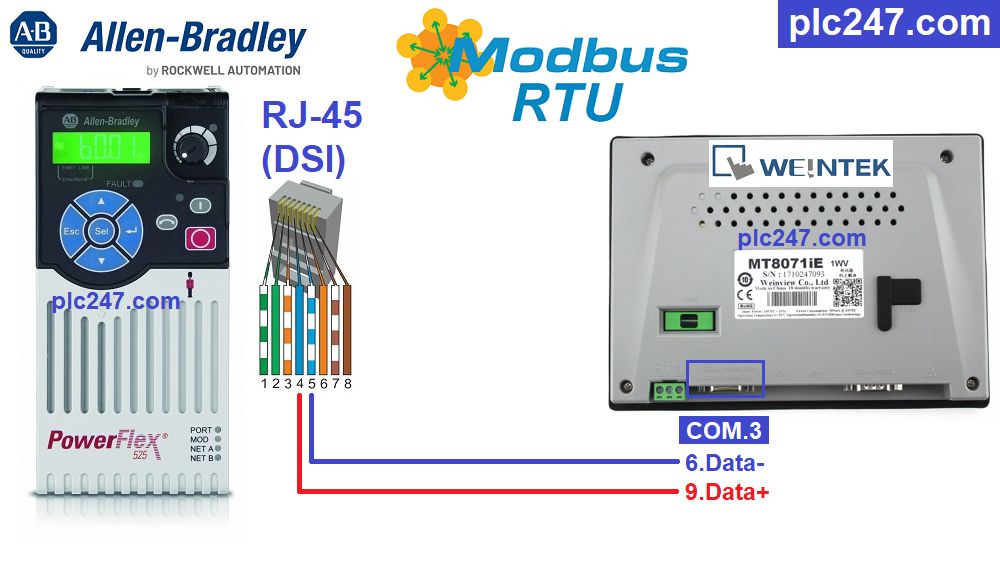

MT8071iE & PowerFlex 525 “Wiring Diagram”

PowerFlex 525 Modbus Parameters Setting

In addition to the basic parameters of the inverter, we need to set the communication parameters as follows:

Register for Control

>>> Motor Control Address = 2000 (Hexa)

• Set Word 2000 = 18 >>> Run Forward
• Set Word 2000 = 34 >>> Run Reverse
• Set Word 2000 = 1 >>> Stop
  = 8 >>> VFD Fault Reset

>>> Frequency Setting Address = 2001 (Hexa)

Register for Monitoring

Weintek MT8071iE Modbus Configuration

MT8071iE HMI Programming

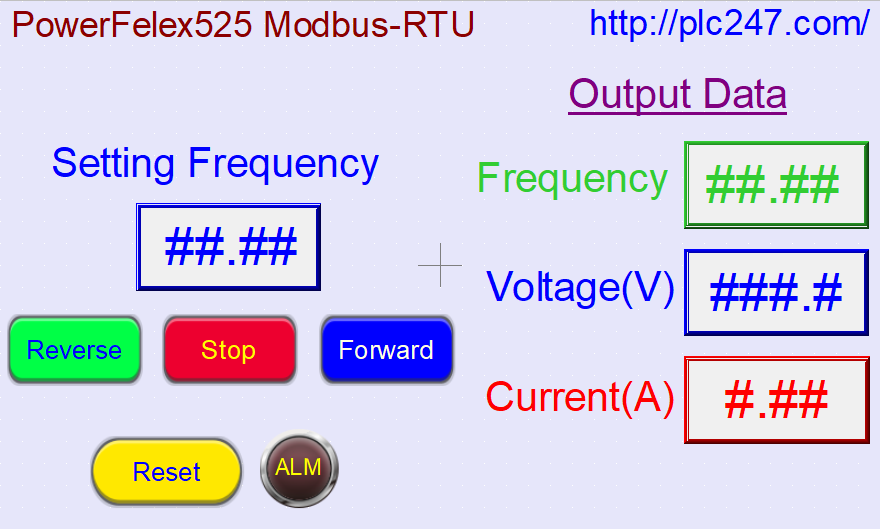

+ HMI Interface

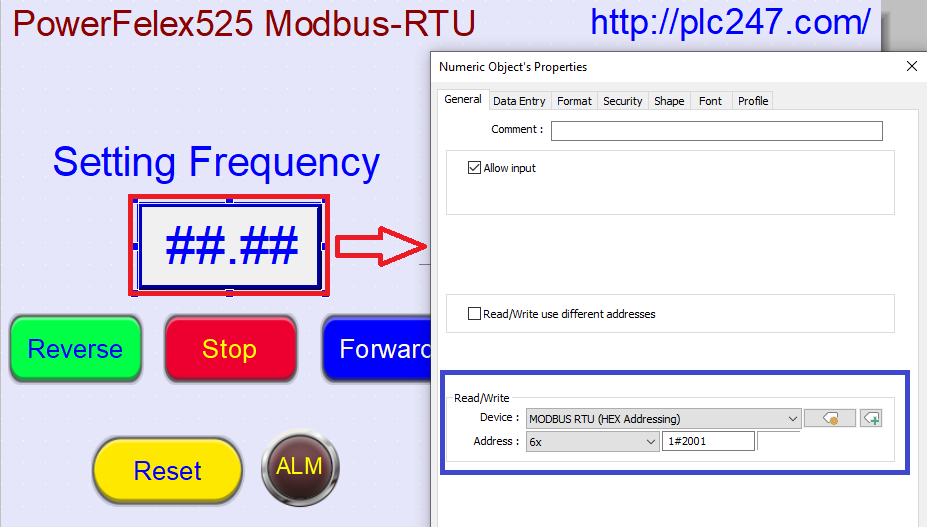

+ Frequency Setting

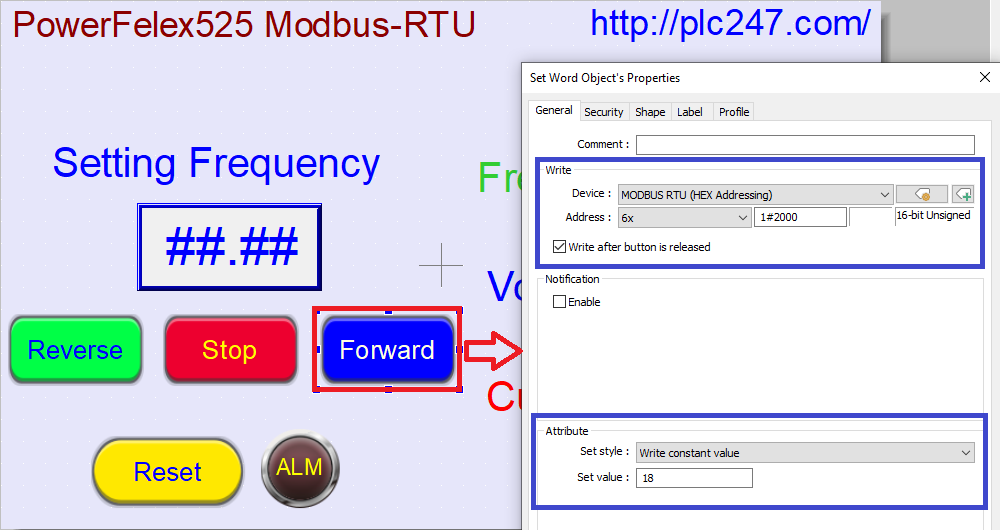

+ Forward Run

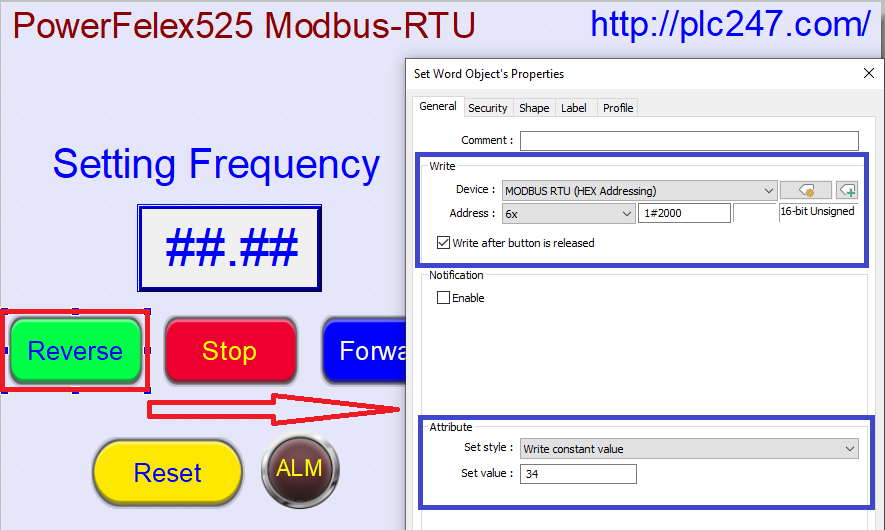

+ Reverse Run

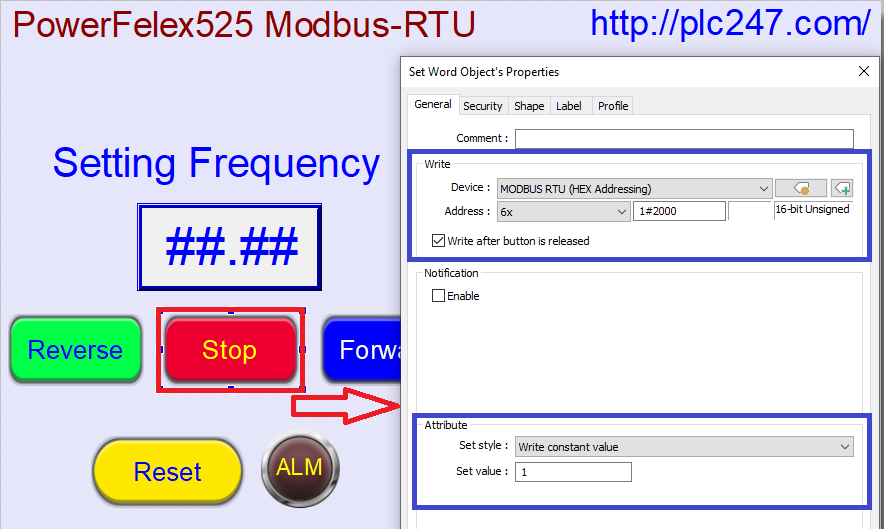

+ Stop Run

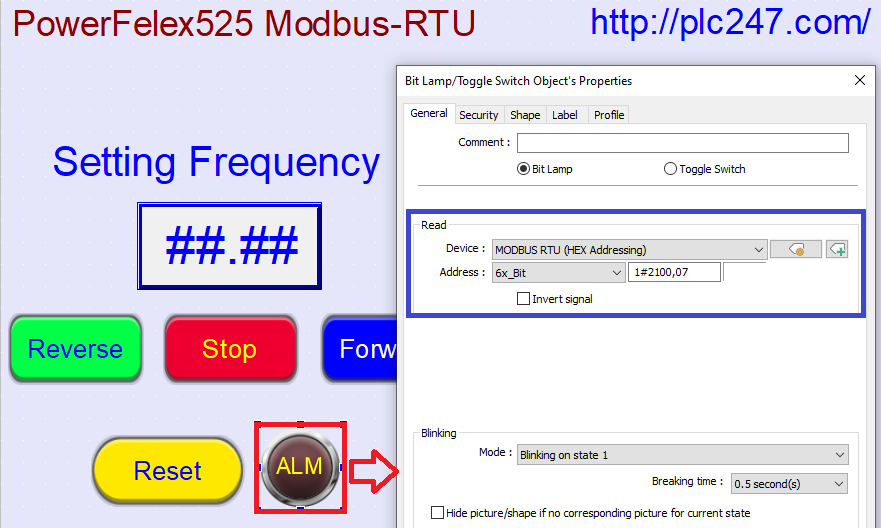

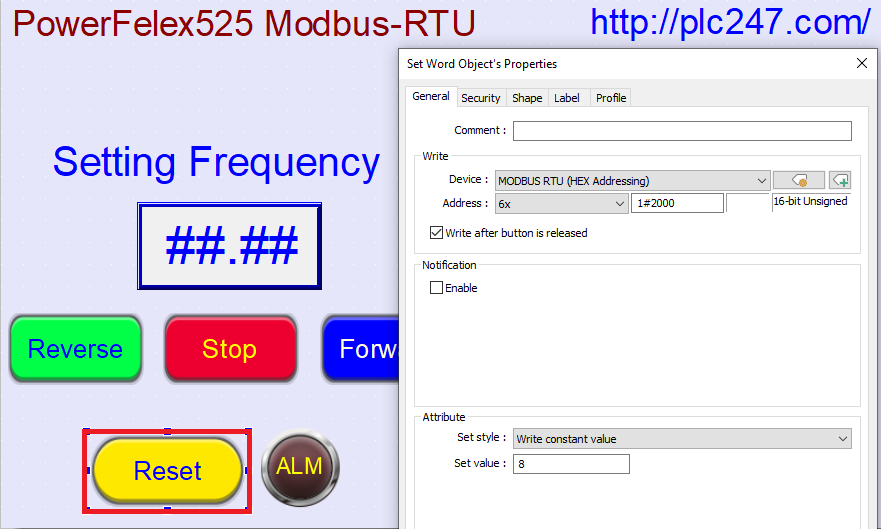

+ Reset VFD Error

+ VFD Error Status

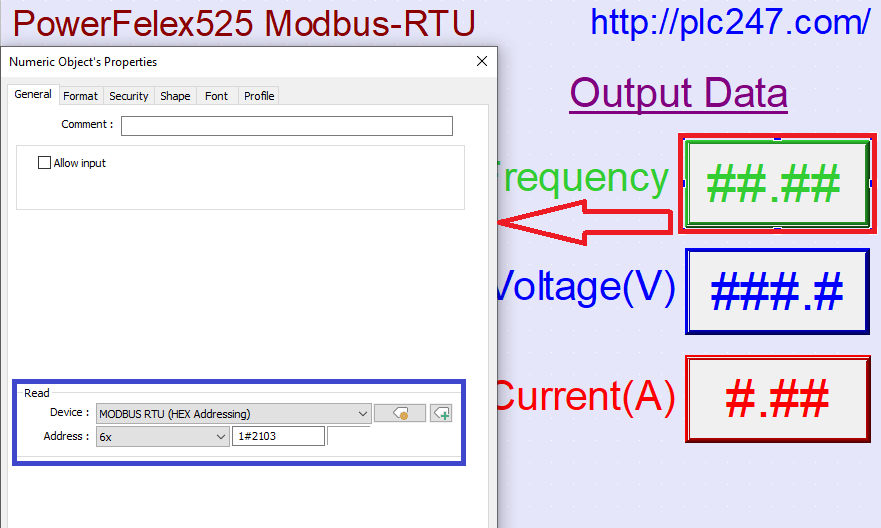

+ Frequency Output

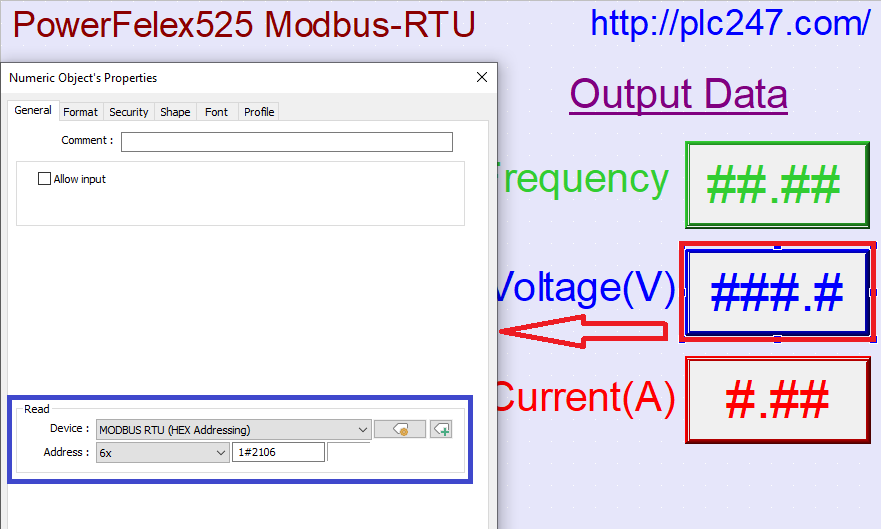

+ Voltage Output

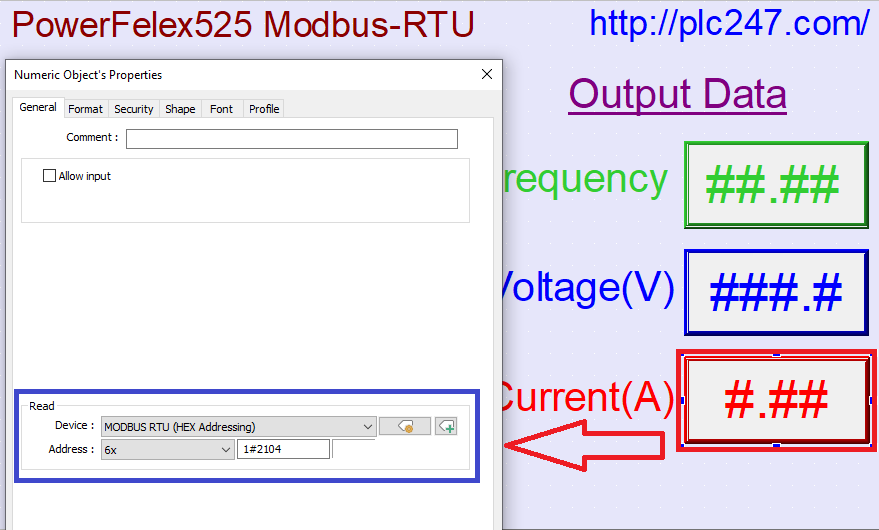

+ Current Output

Video Tutorial

======

Recommended software and documentation:

• EasyBuilderPro Software for MT8071iE Programming
• (Password Extract: thelivingchristmascompany.com)
