In the previous article thelivingchristmascompany.com instructed you to connect the easiest way to keep PLC KV-5500 (using KV-L21V) with E5CC via Modbus-RTU using RS485

Today thelivingchristmascompany.com will continue to guide you to connect to 2 or more (maximum 32) E5CC

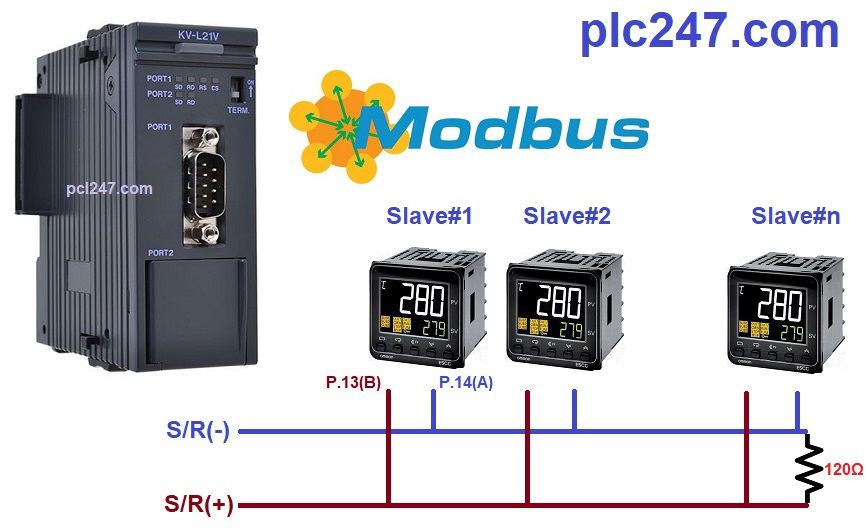

Connection diagram between KV-L21V and E5CC

We will use a 2-wire RS485 connection to connect the KV-L21V and E5CC module (note twisted and install the end resistor if transmitting far)

Configure KV-L21V using KV-Studio software

We use COM2 port in KV-L21V

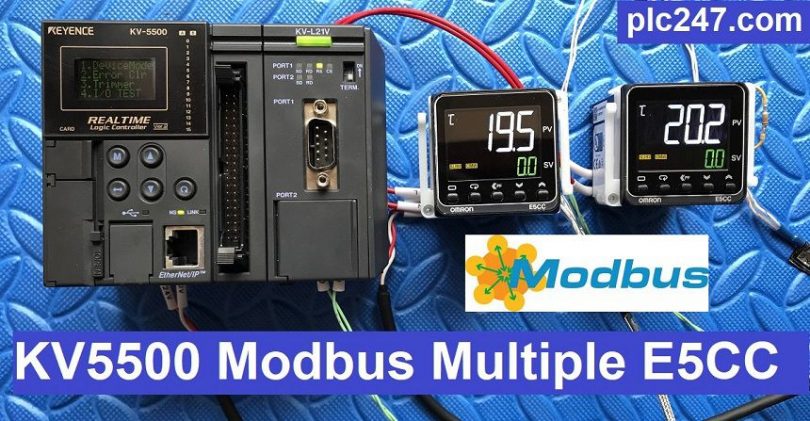

Video instructions for installing, configuring and testing a sample program between KV5500 and E5CC

Program Sample Download Link

Password Extract: thelivingchristmascompany.com

======

If you have any questions about the connection between the KEYENCE PLC and E5CC, please comment below the article, thelivingchristmascompany.com will answer you if possible.
