PowerHello everyone!
Many people have messaged thelivingchristmascompany.com to ask how to use LabView to communicate with devices via Modbus RTU using RS485 communication. That’s why today thelivingchristmascompany.com will write a tutorial for you to do this.
The first inverter I used was the Allen Bradley PowerFlex 525 Inverter. Attention, we need to prepare 1 USB to RS485 Cable.
Computer & PowerFelex 525 “Wiring Diagram”

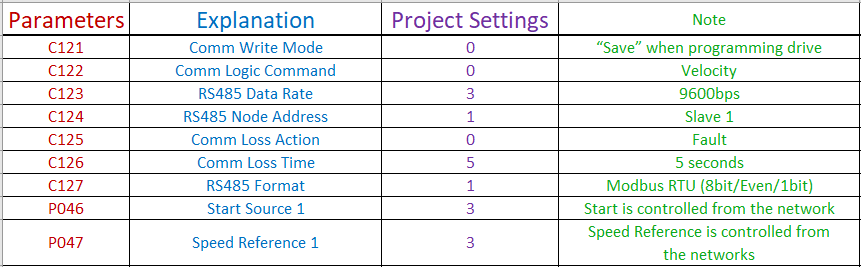

PowerFlex 525 Modbus RTU Parameters Setting
In addition to the basic parameters of the inverter (frequency, voltage, current), we need to set the following communication parameters:
Register for Control
>>> Motor Control Address = 8192
- Set Word 8192 = 18 >>> Motor Forward Run
= 34 >>> Motor Reverse Run
= 1 >>> Stop Run
= 8 >>> VFD Clear Error
>>> Frequency Reference Address = 8193
Register for Monitoring
LabView Modbus-RTU Programming
Front Panel
Block Diagram
Video Tutorial
======
References Document
(Password Extract: thelivingchristmascompany.com)
Please comment and share the article to the community if you find it useful.
Thanks and Best Regards!
